中置 音箱

REVEL Concerta C12中置音箱

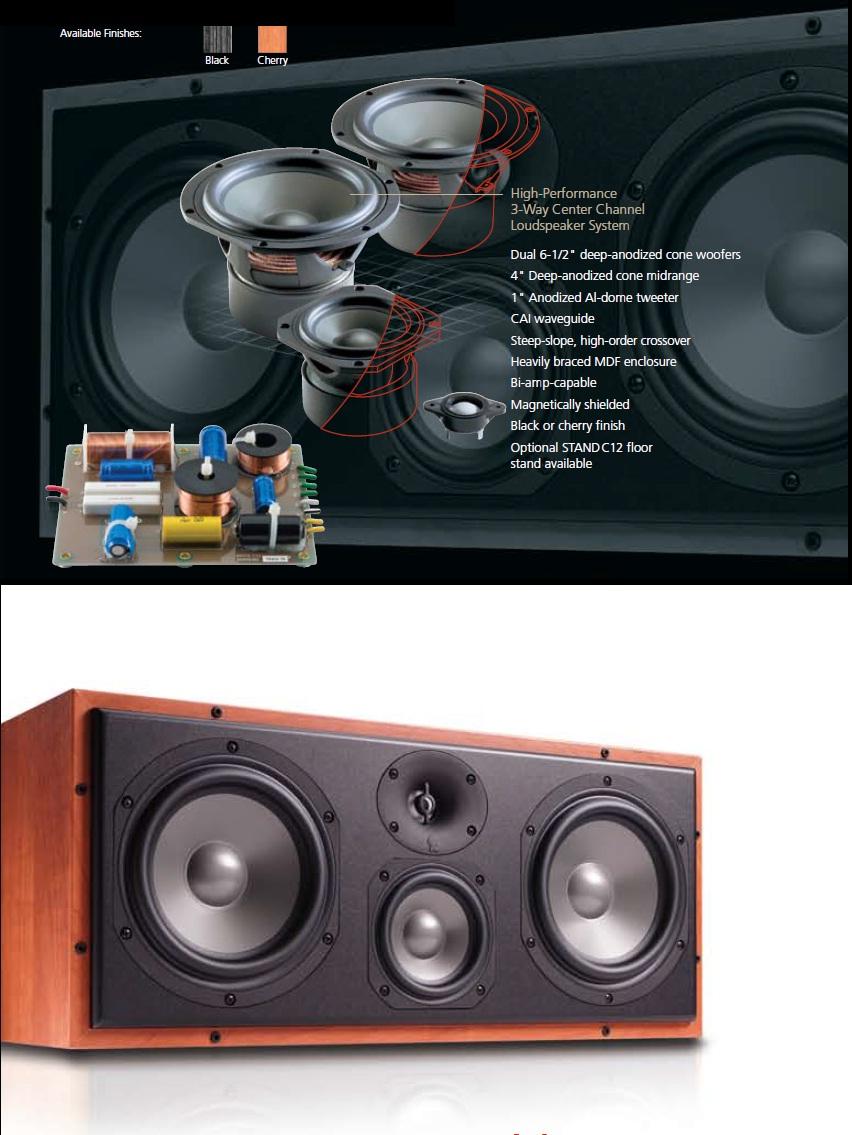

概述Concerta系列3分频中置音箱

频率响应In-room response: ±1.5dB from 85Hz to 15kHz Low-frequency extension: –10dB @ 50Hz Bandwidth: –6dB @ 60Hz and 45kHz

建议功放功率20 – 175 Watts

灵敏度(2.83V @ 1m)90dB SPL, with 2.83V @ 1m (4 pi anechoic)

系统阻抗6 ohms

分频点(Hz)3-Way, high-order @ 500Hz and 2.8kHz

高音单元1" (2.5 cm) micro-ceramic composite (MCC) cone tweeter

中音单元4" (10 cm) micro-ceramic composite (MCC) cone midrange

低音单元Two 6 ½" (16.5 cm) micro-ceramic composite (MCC) cone woofers

外形尺寸Dimensions (H x W x D): 9.1" x 20.9" x 10.1" (23.1 cm x 53.1 cm x 25.7 cm

重量Shipping weight: 32 lb (14.5 kg)

外饰面Black ash (Cherry discontinued as of Oct-2012)

可选配件Optional Floor Pedestal for C12 • Adds 12.1" (30.7 cm) to C12 height • Textured black painted finish
